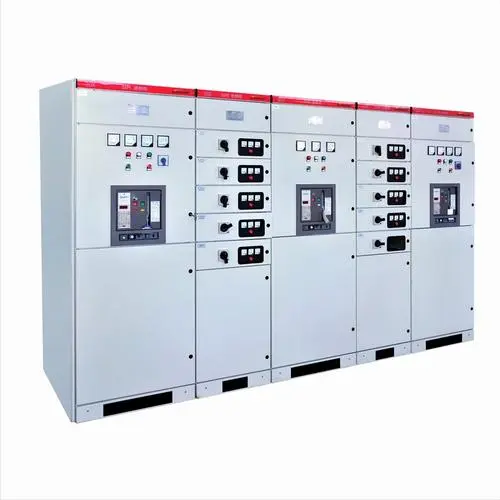

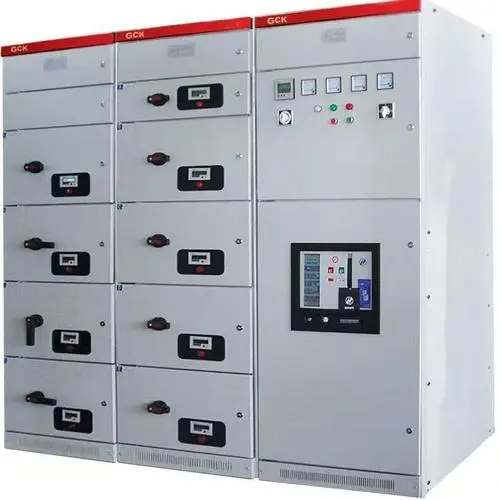

The GCK low-voltage withdrawable switchgear is widely used in power plants, substations, industrial enterprises, and high-rise buildings for power distribution centers (PC) and motor control centers (MCC). It is designed for AC systems with a frequency of 50-60Hz, rated operational voltage of 660V or below, and rated current of 4000A or below. The switchgear is utilized for power distribution, centralized motor control, and reactive power compensation in power generation and supply systems.

The GCK low-voltage withdrawable switchgear is used in three-phase three-wire or three-phase four-wire systems, serving as substation, feeder, or motor-specific low-voltage distribution equipment. It enhances the capacity and mechanical strength while maintaining superior electrical performance compared to similar products. The switchgear features a robust structure, attractive appearance, high protection level, reliability, and ease of maintenance, making it suitable for upgrading low-voltage switchgear assemblies.

Main Technical Parameters:

Rated Insulation Voltage: AC 660V, AC 1000V
Rated Operational Voltage: AC 380V, AC 660V
Rated Frequency: 50Hz
Horizontal Busbar Rated Current: 1250~4000A
Vertical Busbar Rated Current: 1000A
Feeder Circuit Current: 2500A
Drawer Circuit Current: 500A
Control Motor Capacity: 320KW
Horizontal Busbar Peak Withstand Current (0.1s): 63KA, 105KA, 176KA
Horizontal Busbar Short-Time Withstand Current (1s): 30KA, 50KA, 80KA, 100KA
Vertical Busbar Peak Withstand Current (0.1s): 63KA, 105KA
Vertical Busbar Short-Time Withstand Current (1s): 30KA, 50KA
Rated Power Frequency Withstand Voltage (1min): 2500V
Secondary Power Frequency Withstand Voltage (1min): 2500V
Protection Degree: IP30, IP40
External Dimensions (Width * Depth * Height in mm): 600 (800, 1000) * 800 (1000) * 2200
